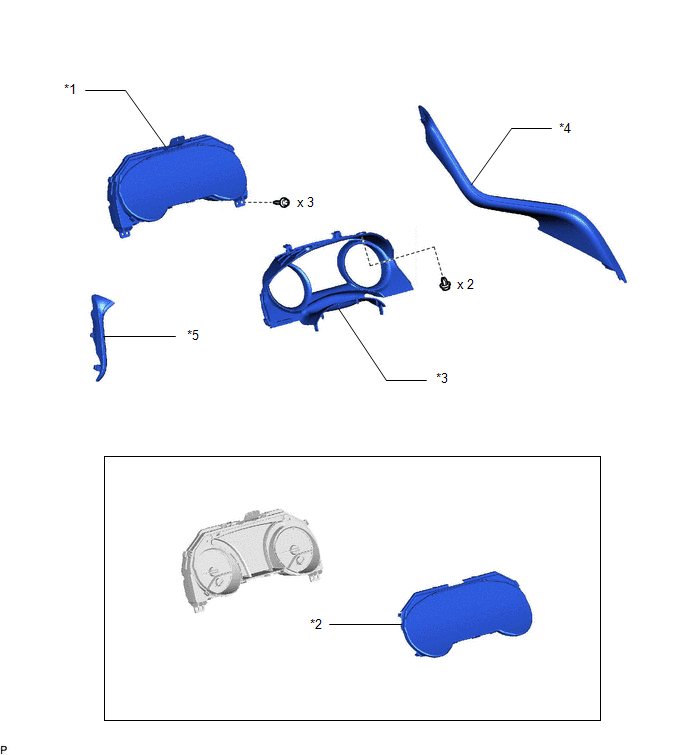

PIECES CONSTITUTIVES
SCHEMA
|
*1 | ENSEMBLE DE COMBINE D'INSTRUMENTS |
*2 | VITRE DE COMBINE D'INSTRUMENTS |
|
*3 | ENSEMBLE DE PANNEAU DE FINITION DE COMBINE D'INSTRUMENTS |
*4 | COMBINE D'INSTRUMENTS DE PROTECTION DE COMBINE D'INSTRUMENTS N° 1 |
|
*5 | COMBINE D'INSTRUMENTS DE PROTECTION DE COMBINE D'INSTRUMENTS N° 2 |
- | - |
DeposeBornes De L'ecu
BORNES DE L'ECU
REMARQUE:
Il se peut que les DTC soient enregistrés lorsque les connecteurs sont débranchés lors de la vérification. Par conséquent, veiller à supprimer les DTC à l'aide du Techstream une fois la vérification terminée.
Ne pas appliquer une force excessive sur ...
Emplacement Des Pieces Constitutives
EMPLACEMENT DES PIECES CONSTITUTIVES SCHEMA
*1 CAMERA DE RECONNAISSANCE DE MARCHE
AVANT *2
ENSEMBLE DE CAPTEUR RADAR A ONDES MILLIMETRIQUES
*3 ENSEMBLE D'ACTIONNEUR DE FREIN
- ECU DE CONTROLE DE DERAPAGE
*4 ECM
*5 ENSEMBLE DE BLOC DE RELAIS DE
COM ...
A25a-fks Bougie D'allumage
Pieces ConstitutivesPIECES CONSTITUTIVES SCHEMA
*1 ENSEMBLE DE BOBINE D'ALLUMAGE
*2 SOUS-ENSEMBLE DE CACHE DE MOTEUR N° 1
*3 BOUGIE D'ALLUMAGE
- -
N*m (kgf*cm, ft*lbf): couple de serrage prescrit
- - DeposeDEPOSE MESURE DE PRECAUTION / ...
