PIECES CONSTITUTIVES
SCHEMA
|

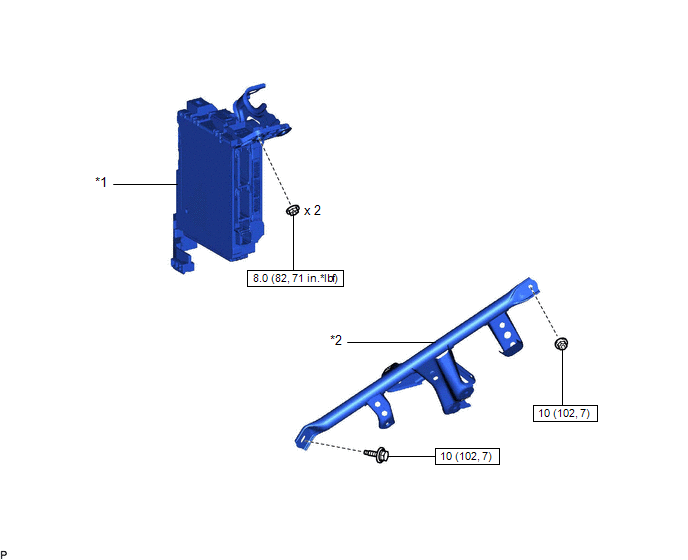

*1 | ENSEMBLE DE BLOC DE JONCTION DE TABLEAU DE BORD AVEC ECU DE CARROSSERIE PRINCIPALE |
*2 | TABLEAU DE BORD SUR SOUS-ENSEMBLE DE RENFORT D'AUVENT N° 3 |
|
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- | - |
SCHEMA
|

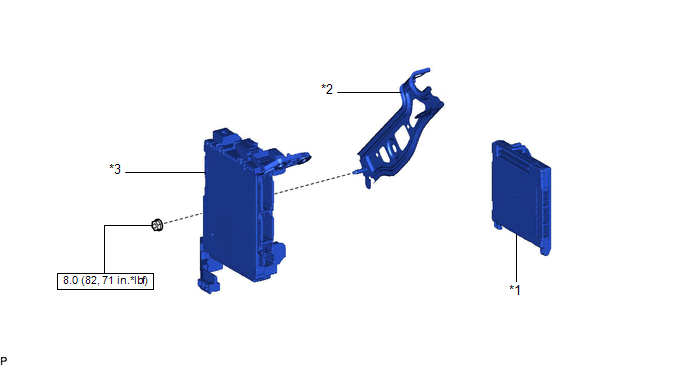

*1 | ECU DE CARROSSERIE PRINCIPALE (ECU DE CARROSSERIE DU RESEAU MULTIPLEX) |
*2 | SUPPORT D'ATTACHE DE FAISCEAU DE CABLES |
|
*3 | ENSEMBLE DE BLOC DE JONCTION DE TABLEAU DE BORD |
- | - |
|
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- | - |
DeposePieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 SOUS-ENSEMBLE DE RENFORT SUPERIEUR
CENTRAL DE SUSPENSION AVANT
- -
Couple de serrage pour "zones principales concernant la performance
de base du véhicule" tel que déplacement/virage/arrêt": N*m (kgf*cm,
lbf*pi) ...
Verification / Suppression Des Dtc
VERIFICATION / SUPPRESSION DES DTC VERIFIER DTC
(a) Brancher le Techstream sur le DLC3. (b) Mettre le contacteur d'allumage en position ON.
(c) Allumer le Techstream. (d) Sélectionner les menus suivants: Chassis / LKA/LDA / Trouble Codes.
(e) Vérifier les détails des DTC. Cliquer ici
C ...
Ampoule De Clignotant Arriere
RemplacementREMPLACEMENT MESURE DE PRECAUTION / REMARQUE / CONSEIL
CONSEIL:
Procéder de la même façon pour le côté droit et pour le côté gauche.
La procédure suivante se rapporte au côté gauche.
PROCEDURE 1. DEPOSER LE COUVERCLE DE FEU COMBINE ARRIERE
Cliquer ici 2. DETA ...
