PIECES CONSTITUTIVES
SCHEMA
|

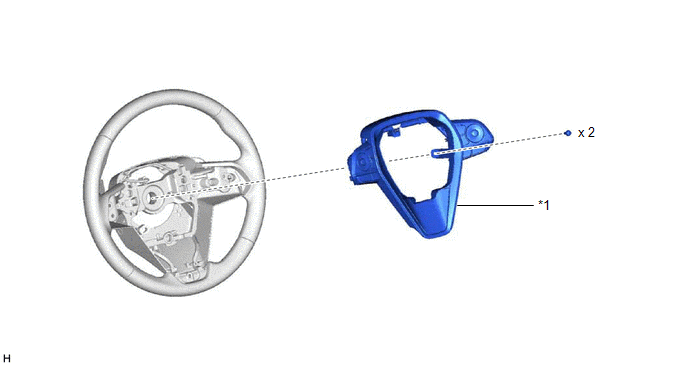

*1 | ENSEMBLE DE CONTACTEUR AU VOLANT |
- | - |
DeposeVerification / Suppression Des Dtc
VERIFICATION / SUPPRESSION DES DTC VERIFIER LE DTC ET LES DONNEES D'ARRET SUR IMAGE (A L'AIDE DU TECHSTREAM)
(a) Mettre le contacteur du moteur en position OFF. (b) Brancher le Techstream sur le DLC3.
(c) Mettre le contacteur du moteur en position ON (IG). (d) Allumer le Techstream.
(e) Sélec ...
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*A pour A25A-FKS
- -
*1 ATTACHE DE
CANALISATION *2
SOUS-ENSEMBLE DE TUYAU D'ASPIRATION
*3 SOUS-ENSEMBLE DE
DURITE D'ASPIRATION *4
SOUS-ENSEMBLE DE DURITE DE DECHARGE DE REFRIGERANT DE REFROIDISSEUR
N° 1 ...
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*A pour jantes en acier
*B sauf jantes en acier
*1 ENSEMBLE DE ROUE
*2 ECROU DE MOYEU D'ESSIEU
*3 CHAPEAU DE ROUE
- -
Couple de serrage pour "zones principales concernant la performance de ba ...
