Toyota Camry Manuel de réparation XV50 (2011–2019): Pieces Constitutives

PIECES CONSTITUTIVES

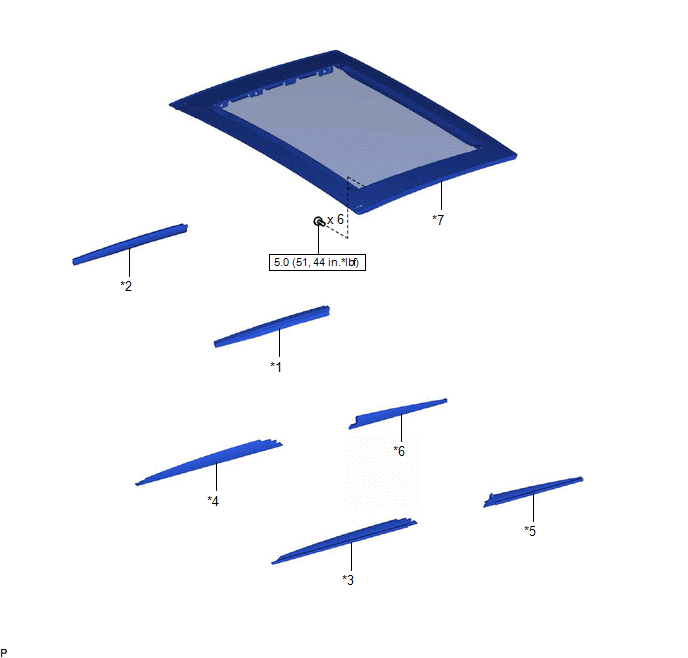

SCHEMA

*1

GARNISSAGE LATERAL DE TOIT OUVRANT N° 2 GAUCHE

*2

GARNISSAGE LATERAL DE TOIT OUVRANT N° 2 DROIT

*3

GARNISSAGE LATERAL DE TOIT OUVRANT N° 3 GAUCHE

*4

GARNISSAGE LATERAL DE TOIT OUVRANT N° 3 DROIT

*5

GARNISSAGE LATERAL DE TOIT OUVRANT N° 4 GAUCHE

*6

GARNISSAGE LATERAL DE TOIT OUVRANT N° 4 DROIT

*7

SOUS-ENSEMBLE DE VITRE DE TOIT OUVRANT

-

-

N*m (kgf*cm, lbf*pi): couple de serrage prescrit

-

-

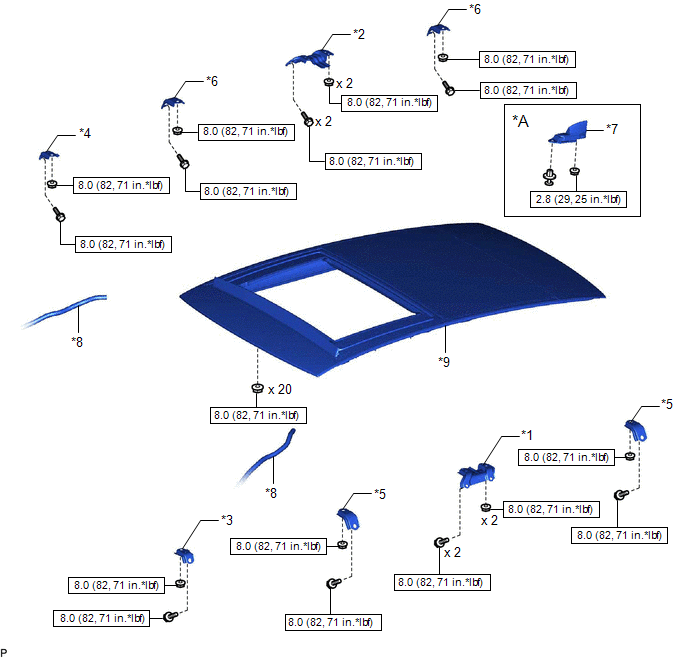

SCHEMA

*A

avec contacteur (SOS) manuel

-

-

*1

SUPPORT DE FIXATION CENTRAL D'ENCADREMENT DE TOIT OUVRANT GAUCHE

*2

SUPPORT DE FIXATION CENTRAL D'ENCADREMENT DE TOIT OUVRANT DROIT

*3

SUPPORT DE FIXATION AVANT D'ENCADREMENT DE TOIT OUVRANT GAUCHE

*4

SUPPORT DE FIXATION AVANT D'ENCADREMENT DE TOIT OUVRANT DROIT

*5

SUPPORT DE FIXATION ARRIERE D'ENCADREMENT DE TOIT OUVRANT GAUCHE

*6

SUPPORT DE FIXATION ARRIERE D'ENCADREMENT DE TOIT OUVRANT DROIT

*7

ENSEMBLE D'ANTENNE DE TOIT

*8

DURITE DE VIDANGE DE TOIT OUVRANT

*9

ENSEMBLE D'ENCADREMENT DE TOIT OUVRANT

-

-

N*m (kgf*cm, lbf*pi): couple de serrage prescrit

-

-

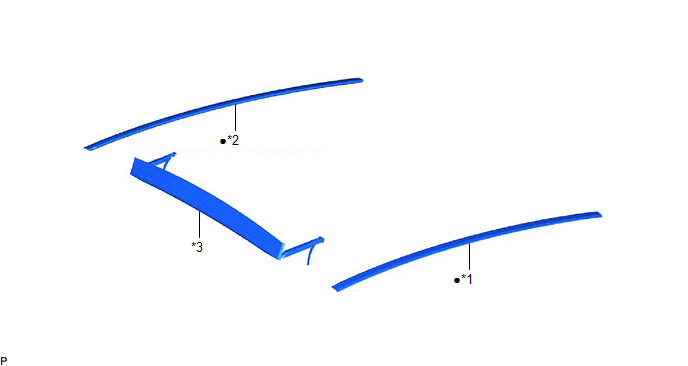

SCHEMA

*1

GARNISSAGE LATERAL DE TOIT OUVRANT N° 1 GAUCHE

*2

GARNISSAGE LATERAL DE TOIT OUVRANT N° 1 DROIT

*3

SOUS-ENSEMBLE DE PANNEAU DE DEFLECTEUR D'AIR DE TOIT OUVRANT

-

-

Pièce non réutilisable

-

-

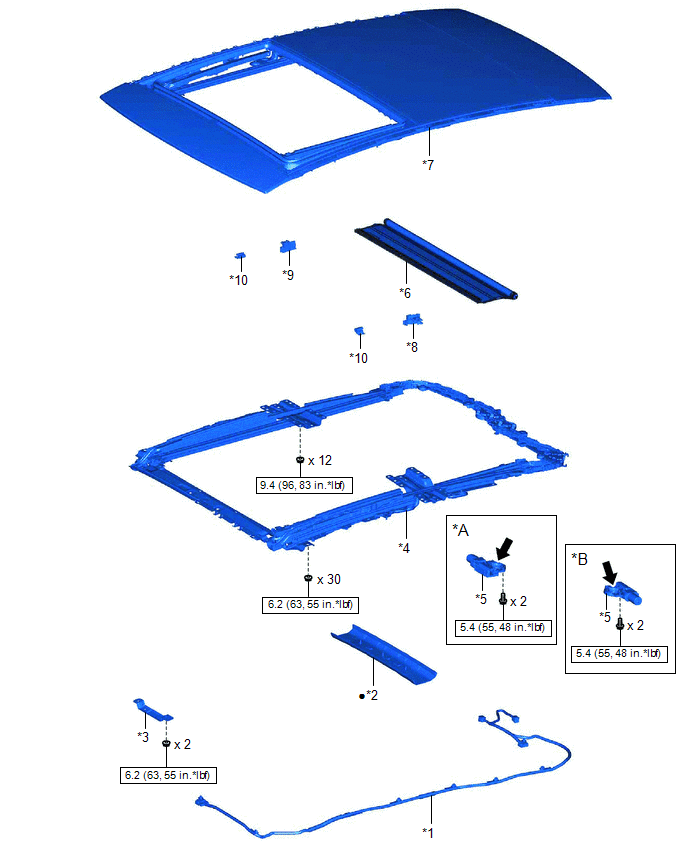

SCHEMA

*A

Pare-soleil de toit

*B

pour vitre de toit ouvrant

*1

CABLE DE TOIT N° 2

*2

GARNISSAGE ARRIERE DE TOIT OUVRANT

*3

SUPPORT DE PLAFONNIER

*4

SOUS-ENSEMBLE DE RAIL DE TOIT OUVRANT

*5

ENSEMBLE DE MECANISME D'ENTRAINEMENT DE TOIT OUVRANT

*6

SOUS-ENSEMBLE DE STORE

*7

PANNEAU DE LOGEMENT DE TOIT OUVRANT

*8

GUIDE DE PARE-SOLEIL DE TOIT OUVRANT GAUCHE

*9

GUIDE DE PARE-SOLEIL DE TOIT OUVRANT DROIT

*10

COULISSEAU DE PARE-SOLEIL DE TOIT OUVRANT

N*m (kgf*cm, lbf*pi): couple de serrage prescrit

Pièce non réutilisable

Graisse MP

-

-

Encadrement De Toit Ouvrant (pour Toit Ouvrant Panoramique)
...
