PIECES CONSTITUTIVES
SCHEMA

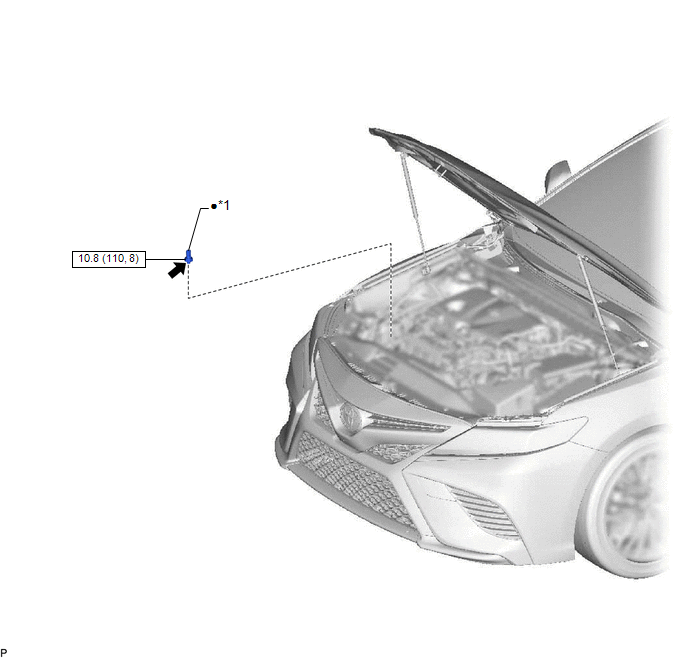

*1 | CAPTEUR DE PRESSION DE CLIMATISATION | - |
- |
![]() |
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
● | Pièce non réutilisable |
![]() |
pour HFC-134a (R134a): Huile pour compresseur ND-OIL 8 ou produit équivalent pour HFO-1234yf (R1234yf): Huile pour compresseur ND-OIL 12 ou produit équivalent |
- | - |
Boulon De Moyeu D'essieu Arriere (sans Système De Frein De Stationnement électrique)
Pieces ConstitutivesPIECES CONSTITUTIVES SCHEMA
*1 BOUCHON D'ORIFICE DE REGLAGE DE MACHOIRE DE FREIN DE STATIONNEMENT
*2 BOULON DE MOYEU D'ESSIEU ARRIERE
*3 DISQUE ARRIERE
*4 ENSEMBLE D'ETRIER DE FREIN A DISQUE ARRIERE
*5 FLEXIBLE ARRIERE
...
Depose
DEPOSE PROCEDURE 1. DEPOSER L'ENSEMBLE DE CACHE DE ROUE DE SECOURS
Cliquer ici 2. DEPOSER LE PLATEAU DE CACHE DE ROUE DE SECOURS
Cliquer ici 3. DEPOSER LE CROCHET D'HABILLAGE DE COMPARTIMENT A BAGAGES N° 1
Cliquer ici 4. DEPOSER LA PLAQUE DE FINITION DE PLANCHER ARRIERE
Cliquer ici ...
Reglage
REGLAGE MESURE DE PRECAUTION / REMARQUE / CONSEIL
*a Boulon de centrage
*b Boulon standard
CONSEIL:
Procéder de la même façon pour le côté droit et pour le côté gauche.
La procédure suivante se rapporte au côté gauche.
Les boulons de centrage serven ...
