Toyota Camry Manuel de réparation XV50 (2011–2019): Pieces Constitutives

PIECES CONSTITUTIVES

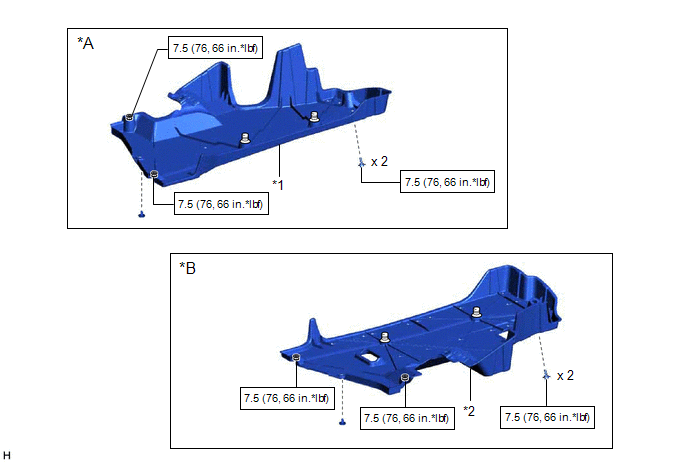

SCHEMA

*A

pour côté droit

*B

pour côté gauche

*1

SABOT DE PROTECTION DE PLANCHER N° 1

*2

SABOT DE PROTECTION DE PLANCHER N° 2

N*m (kgf*cm, lbf*pi): couple de serrage prescrit

-

-

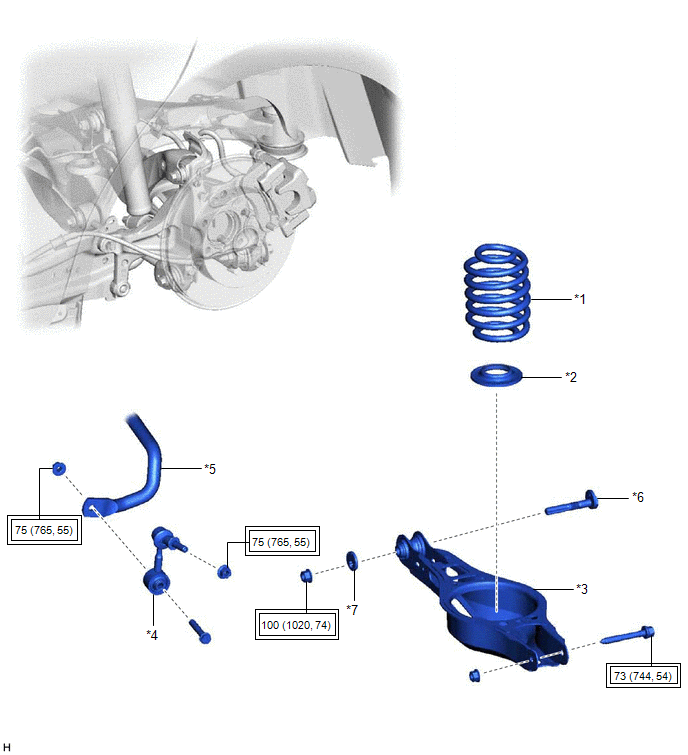

SCHEMA

*1

RESSORT HELICOIDAL ARRIERE

*2

COUSSINET INFERIEUR DE RESSORT HELICOIDAL ARRIERE

*3

ENSEMBLE DE BRAS DE SUSPENSION ARRIERE N° 2

*4

ENSEMBLE DE BIELLETTE DE BARRE STABILISATRICE ARRIERE

*5

BARRE STABILISATRICE ARRIERE

*6

SOUS-ENSEMBLE DE CAME DE REGLAGE DE PINCEMENT DE SUSPENSION ARRIERE

*7

CAME DE REGLAGE DE CARROSSAGE N° 2

-

-

Couple de serrage pour "zones principales concernant la performance de base du véhicule" tel que déplacement/virage/arrêt": N*m (kgf*cm, lbf*pi)

-

-

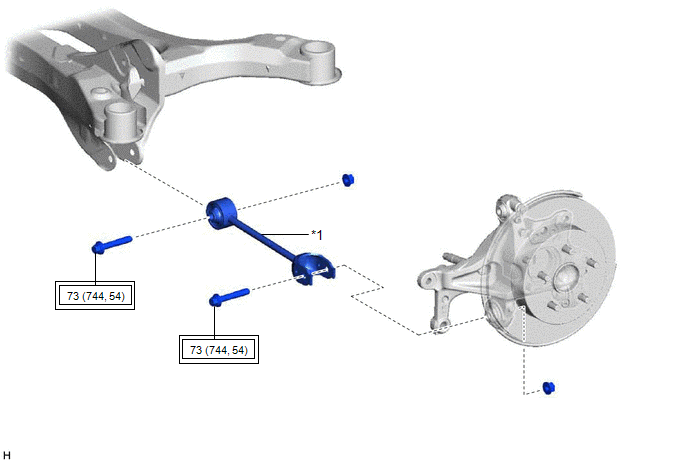

SCHEMA

*1

ENSEMBLE DE BRAS DE SUSPENSION ARRIERE N° 1

-

-

Couple de serrage pour "zones principales concernant la performance de base du véhicule" tel que déplacement/virage/arrêt": N*m (kgf*cm, lbf*pi)

-

-

Bras Inferieur Arriere
...

Depose
DEPOSE MESURE DE PRECAUTION / REMARQUE / CONSEIL Les procédures nécessaires (réglage, calibrage, initialisation ou enregistrement) qui doivent être effectuées une fois que les pièces ont été déposées et reposées ou remplacées lors de l ...
