PIECES CONSTITUTIVES

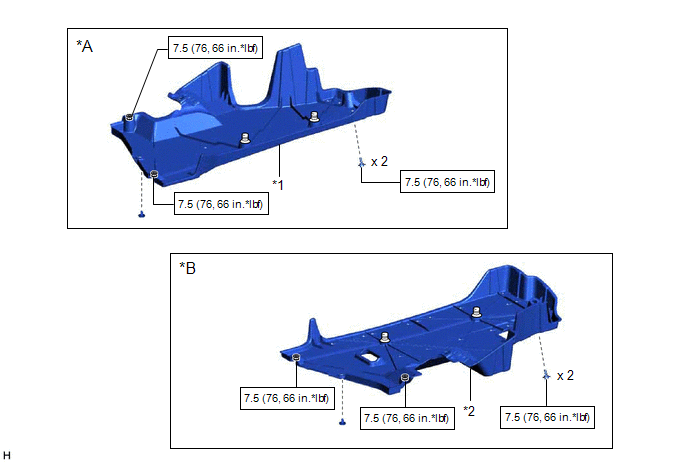

SCHEMA
|
*A | pour côté droit |
*B | pour côté gauche |
|
*1 | SABOT DE PROTECTION DE PLANCHER N° 1 |
*2 | SABOT DE PROTECTION DE PLANCHER N° 2 |
|
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- | - |

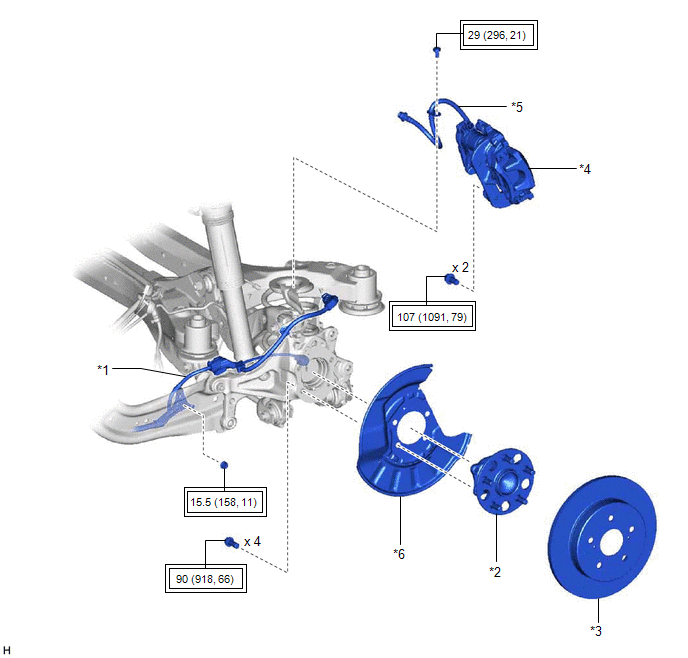

SCHEMA
|
*1 | ENSEMBLE DE CABLE DE FREIN DE STATIONNEMENT N° 2 |
*2 | ENSEMBLE DE MOYEU D'ESSIEU ET DE ROULEMENT ARRIERE |
|
*3 | DISQUE ARRIERE |
*4 | ENSEMBLE D'ETRIER DE FREIN A DISQUE ARRIERE |
|
*5 | FLEXIBLE ARRIERE |
*6 | SOUS-ENSEMBLE DE PARE-POUSSIERE DE FREIN A DISQUE ARRIERE |
|
Couple de serrage pour "zones principales concernant la performance de base du véhicule" tel que déplacement/virage/arrêt": N*m (kgf*cm, lbf*pi) |
- | - |

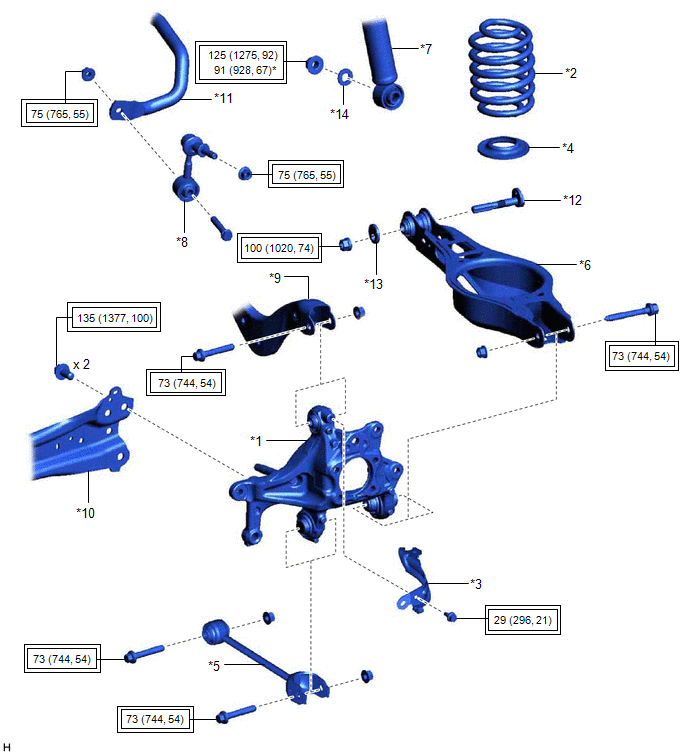

SCHEMA
|
*1 | SOUS-ENSEMBLE DE PORTE-ESSIEU ARRIERE |
*2 | RESSORT HELICOIDAL ARRIERE |
|
*3 | SUPPORT DE FLEXIBLE ARRIERE |
*4 | COUSSINET INFERIEUR DE RESSORT HELICOIDAL ARRIERE |
|
*5 | ENSEMBLE DE BRAS DE SUSPENSION ARRIERE N° 1 |
*6 | ENSEMBLE DE BRAS DE SUSPENSION ARRIERE N° 2 |
|
*7 | ENSEMBLE D'AMORTISSEUR ARRIERE |
*8 | ENSEMBLE DE BIELLETTE DE BARRE STABILISATRICE ARRIERE |
|
*9 | ENSEMBLE DE BRAS DE COMMANDE SUPERIEUR ARRIERE |
*10 | ENSEMBLE DE BRAS TIRE ARRIERE |
|
*11 | BARRE STABILISATRICE ARRIERE |
*12 | SOUS-ENSEMBLE DE CAME DE REGLAGE DE PINCEMENT DE SUSPENSION ARRIERE |
|
*13 | CAME DE REGLAGE DE CARROSSAGE N° 2 |
*14 | RONDELLE PLATE |
|
Couple de serrage pour "zones principales concernant la performance de base du véhicule" tel que déplacement/virage/arrêt": N*m (kgf*cm, lbf*pi) |
* | A utiliser avec une clé à contre-écrou de joint à rotule |
DeposeCourt-circuit à la batterie ou coupure dans le circuit "A" de capteur de pression de rampe de carburant (P019015)
DESCRIPTION Se reporter au DTC P019011. Cliquer ici
N° de DTC Objet de la détection
Condition de détection du DTC
Organe incriminé MIL
Mémoire Remarque
P019015 Court-circuit à la batterie ou coupure dans le circuit "A" de capteur de pression de rampe de ...
Remontage
REMONTAGE PROCEDURE 1. REPOSER LE SOUS-ENSEMBLE DE ROULEMENT CENTRAL DE ROCHET DE DEMARREUR
(a) Appliquer de la graisse pour hautes températures sur les 3 trains planétaires, les 3 axes de train planétaire et le levier de commande de pignon.
Graisse pour hautes températures ...
Plafonnier
Pieces ConstitutivesPIECES CONSTITUTIVES SCHEMA
*A pour type à ampoule
- -
*1 AMPOULE DE PLAFONNIER ARRIERE
*2 ENSEMBLE DE PLAFONNIER
*3 LOGEMENT DE PLAFONNIER
*4 LENTILLE DE PLAFONNIER SCHEMA
*A pour type LED
- - ...
