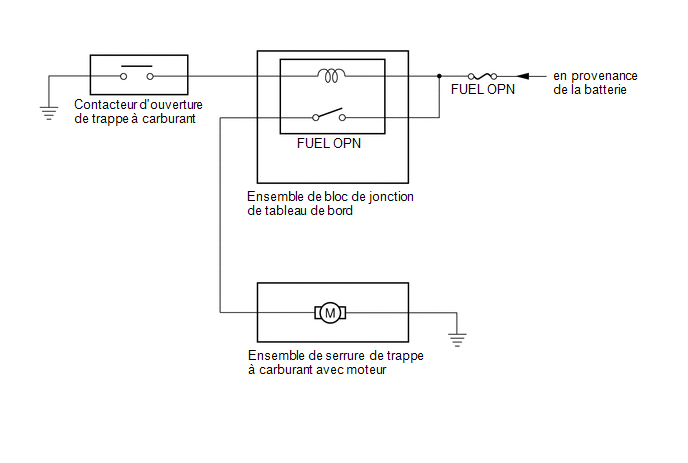

SCHEMA DU SYSTEME

Emplacement Des Pieces Constitutives
Comment Utiliser La Recherche De PannesPieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*A pour côté droit
*B pour côté gauche
*1 SABOT DE PROTECTION DE PLANCHER N° 1
*2 SABOT DE PROTECTION DE PLANCHER N° 2
N*m (kgf*cm, ft*lbf): couple de serrage prescrit
- - SCHEMA
...
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 SOUS-ENSEMBLE DE TUYAU DE SORTIE DE REFROIDISSEUR D'HUILE N° 1
*2 TUYAU DE REMPLISSAGE D'HUILE DE BOITE DE VITESSES N° 1
*3 SOUS-ENSEMBLE DE RACCORD DE REFROIDISSEUR D'HUILE
*4 BOUCHON DE TROP-PLEIN
*5 ENSEMBLE D ...
Repose
REPOSE PROCEDURE 1. REPOSER LA BATTERIE
(a) Reposer la batterie sur le véhicule.
(b) Reposer l'attache de batterie n° 2 sur le sous-ensemble d'attache de batterie avec le boulon.
Torque: 18,5 N·m {189 kgf·cm, 14 ft·lbf}
(c) Brancher le câble sur la borne positive ...
