REPOSE
PROCEDURE
1. REPOSER L'ENSEMBLE DE CONTACTEUR D'OUVERTURE DE PORTE DE COMPARTIMENT A BAGAGES

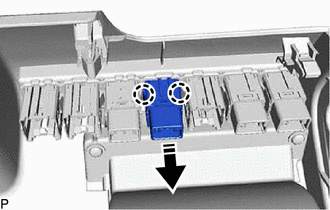

(a) Engager les 2 griffes pour reposer l'ensemble de contacteur d'ouverture de porte de compartiment à bagages, comme indiqué sur le schéma.
![]() |
Poser dans ce sens |
2. SOUS-ENSEMBLE DE TABLEAU DE BORD N° 1
Cliquer ici
3. REBRANCHER LE SOUS-ENSEMBLE DE LEVIER DE COMMANDE DE VERROUILLAGE DE CAPOT
Cliquer ici
4. REPOSER LE COMBINE D'INSTRUMENTS DE PROTECTION DE COMBINE D'INSTRUMENTS N° 2
Cliquer ici
5. REPOSER LE SOUS-ENSEMBLE DE CACHE INFERIEUR DE TABLEAU DE BORD N° 1
Cliquer ici
6. REPOSER LE PANNEAU LATERAL GAUCHE DE TABLEAU DE BORD
Cliquer ici
7. REPOSER LE BOURRELET D'HABILLAGE D'OUVERTURE DE PORTE AVANT GAUCHE
Cliquer ici
8. REPOSER LE SOUS-ENSEMBLE D'HABILLAGE LATERAL D'AUVENT GAUCHE
Cliquer ici
9. REPOSER LA PLAQUE DE SEUIL DE PORTE AVANT GAUCHE
Cliquer ici
