REPOSE
PROCEDURE
1. POSER L'ENSEMBLE D'ECU D'AVERTISSEMENT DE DISTANCE

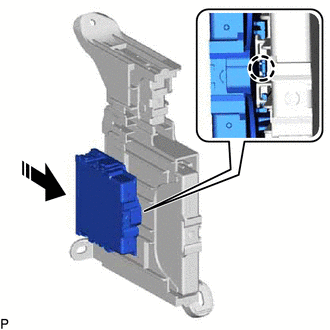

(a) Engager la griffe pour reposer l'ensemble d'ECU d'avertissement de distance comme indiqué sur le schéma.
|
Poser dans ce sens |
2. REPOSER LE BOITIER D'INTEGRATION DROIT D'ECU
Cliquer ici
3. REPOSER LE SOUS-ENSEMBLE INFERIEUR DE TABLEAU DE BORD
Cliquer ici
4. REPOSER L'ENSEMBLE D'AIRBAG INFERIEUR DE TABLEAU DE BORD N° 2
Cliquer ici
5. EFFECTUER LE CALIBRAGE
Cliquer ici
SST: 09989-00020
