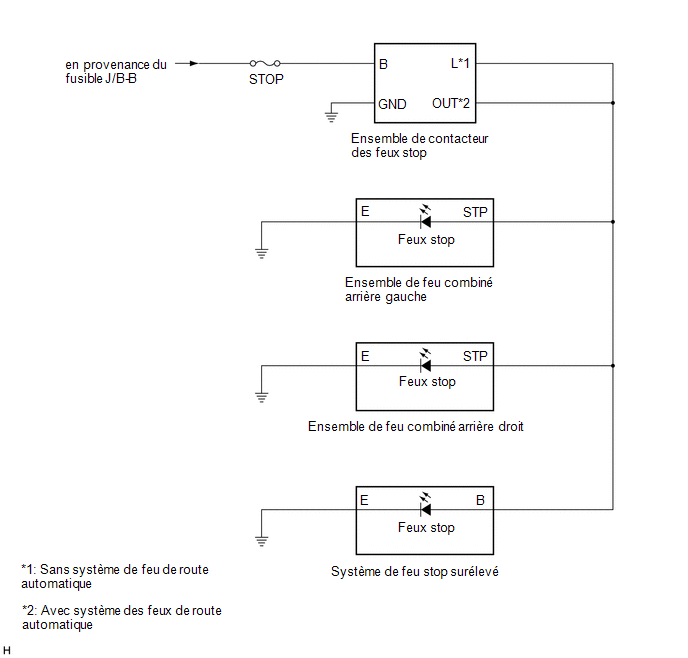

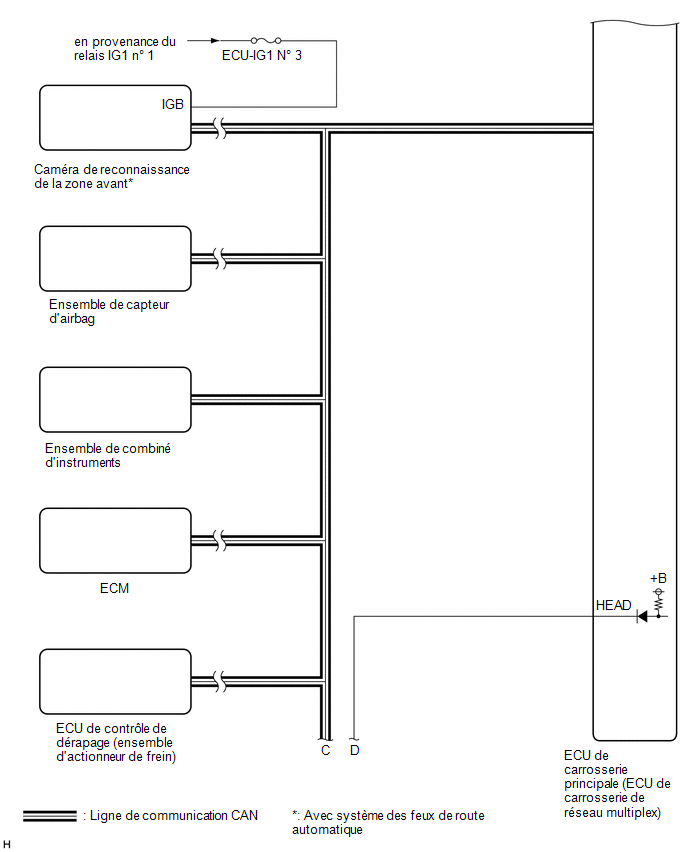

SCHEMA DU SYSTEME

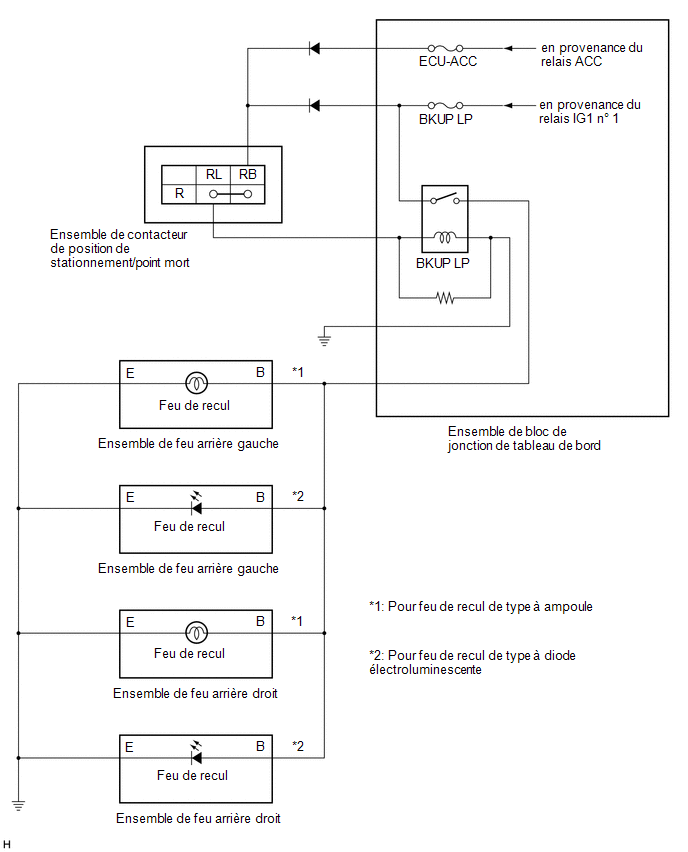

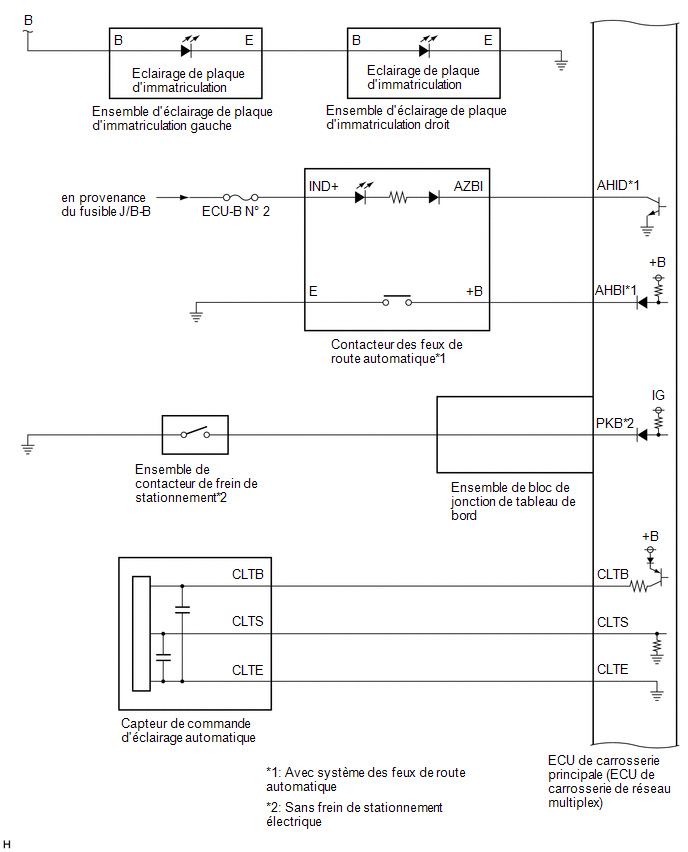

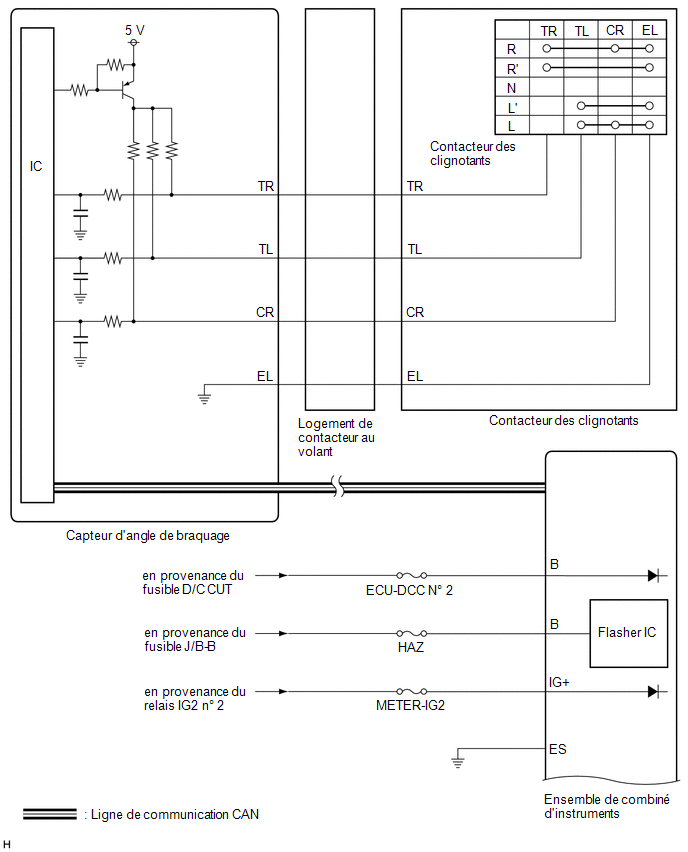

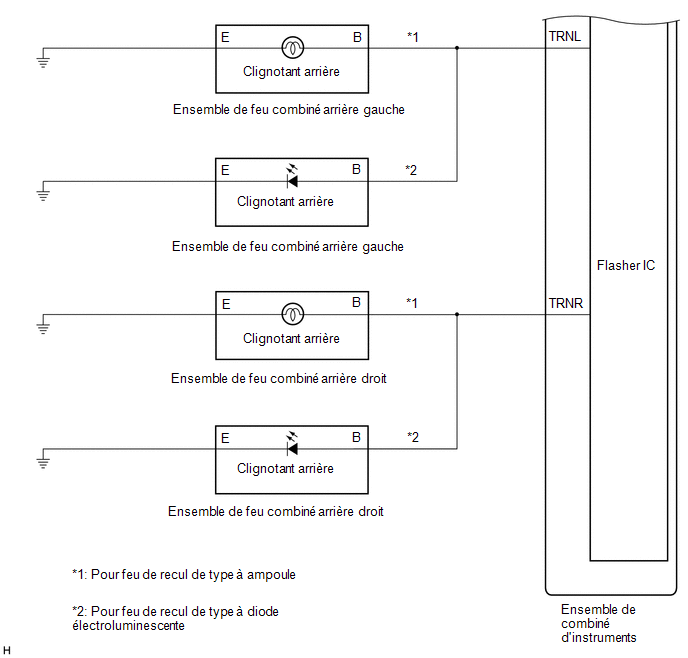

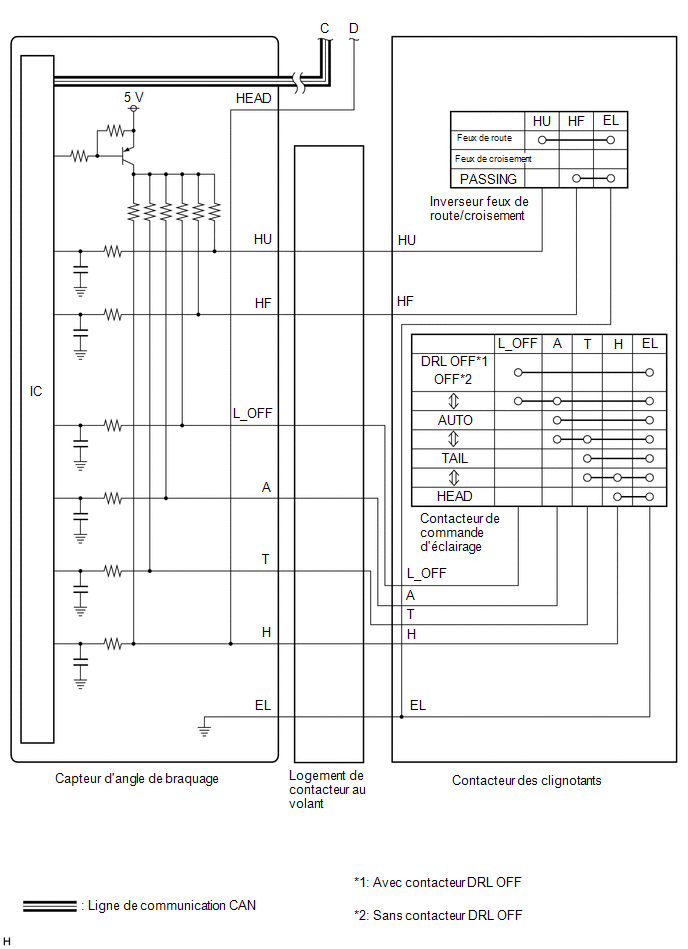

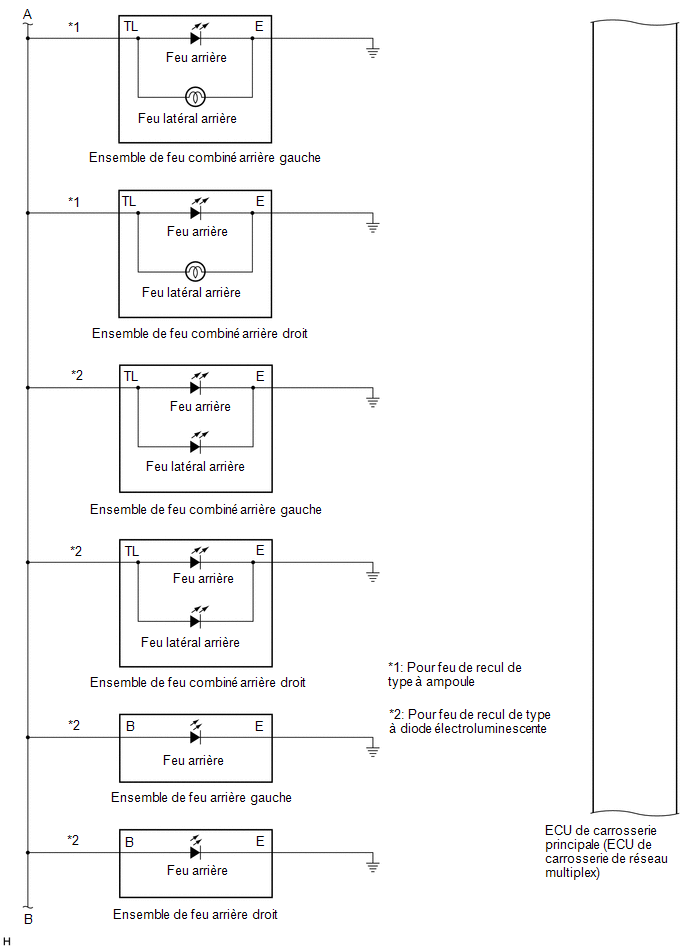

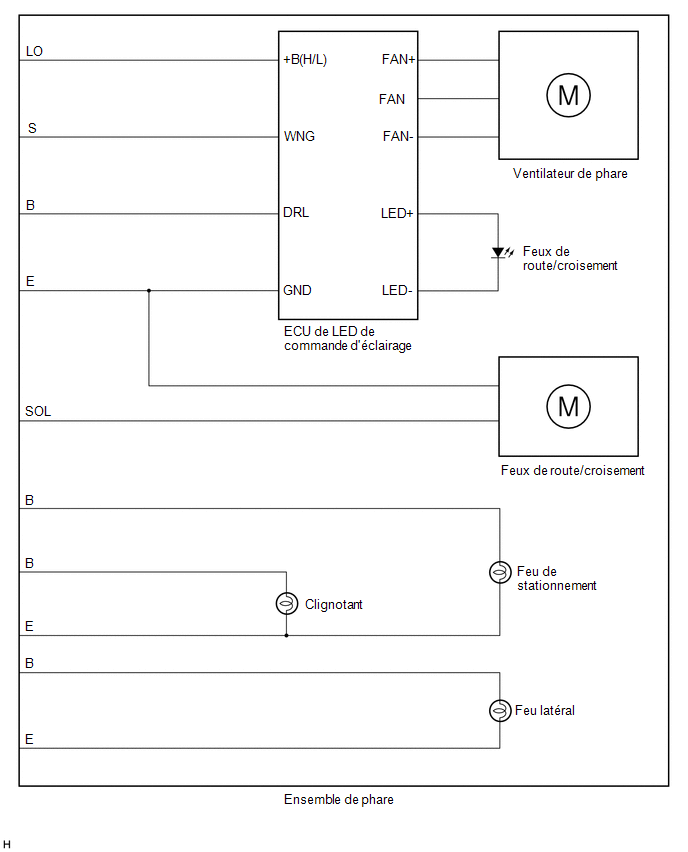

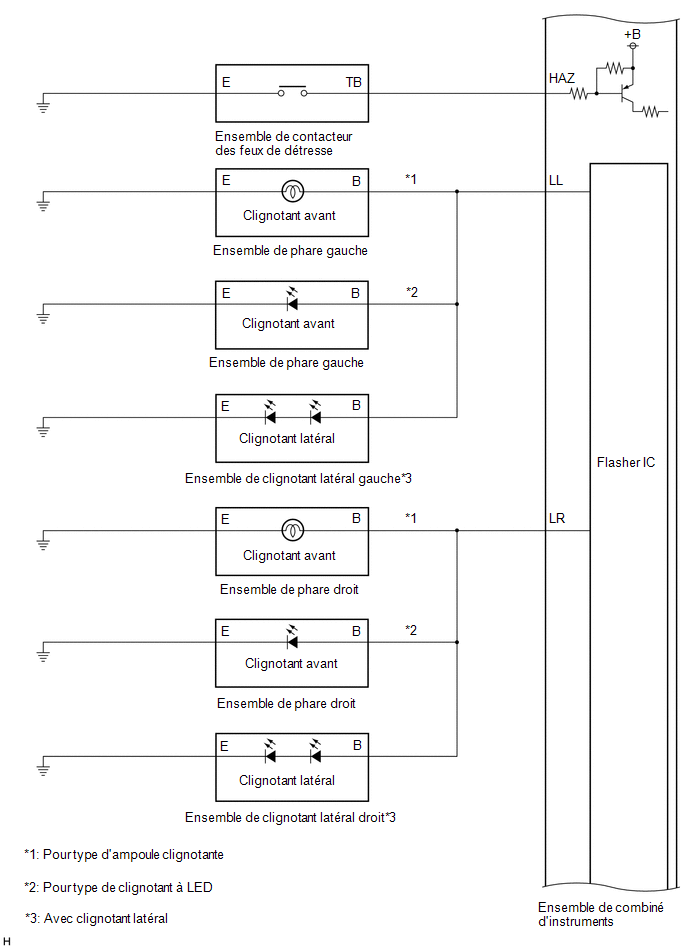

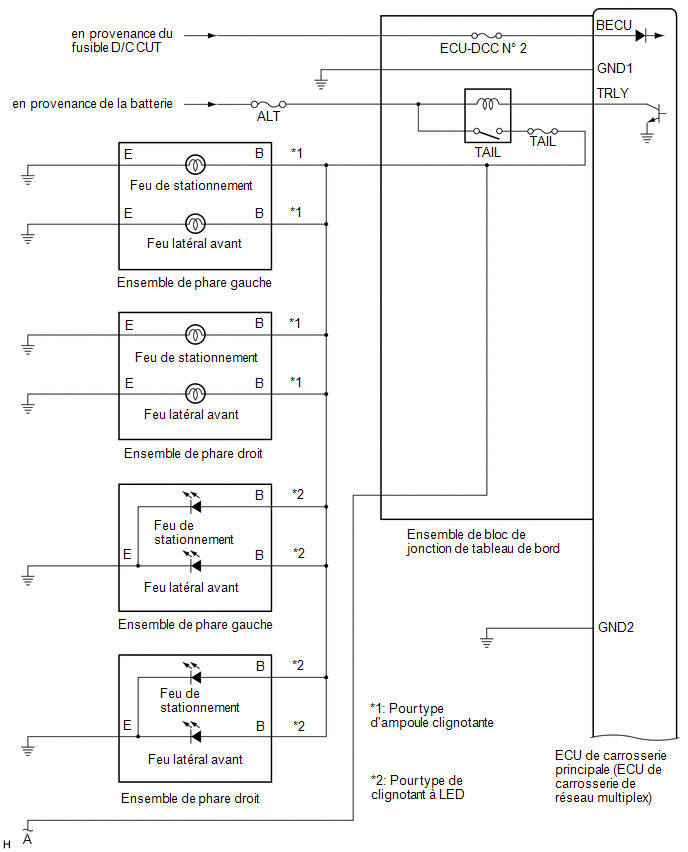

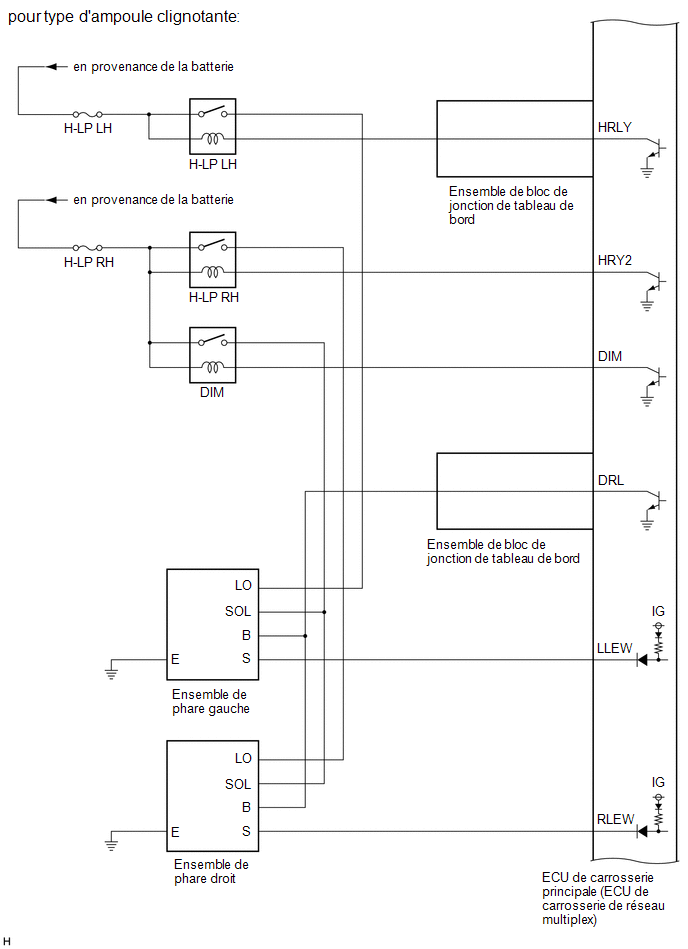

CIRCUIT D'ENSEMBLE DE PHARE (pour clignotant de type ampoule)

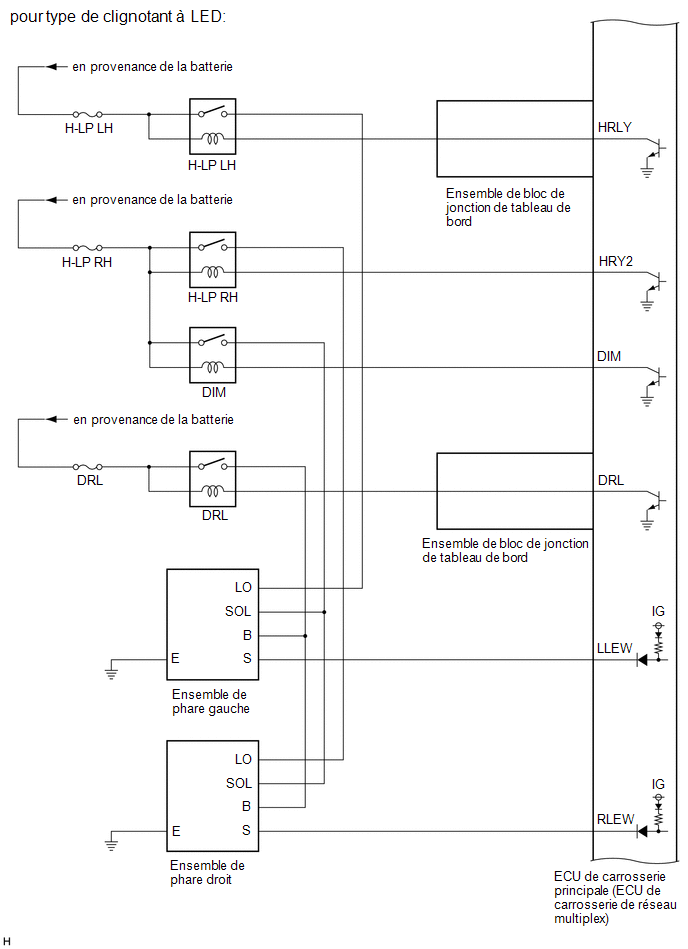

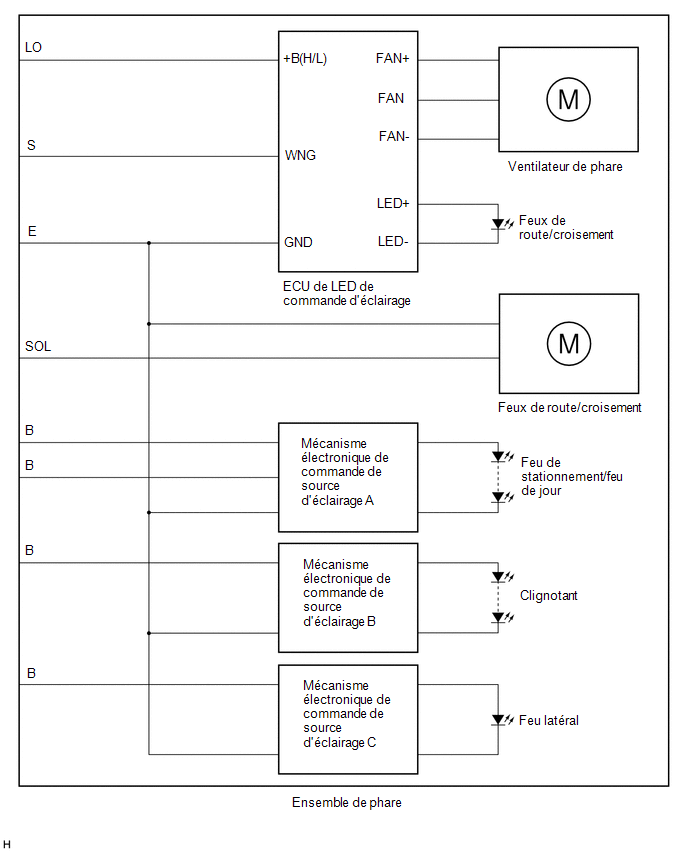

CIRCUIT D'ENSEMBLE DE PHARE (pour clignotant de type LED)

Emplacement Des Pieces Constitutives
Comment Utiliser La Recherche De PannesPieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 COLLECTEUR D'ECHAPPEMENT (TWC: catalyseur avant)
*2 RENFORT DE COLLECTEUR
*3 ISOLANT THERMIQUE DE COLLECTEUR D'ECHAPPEMENT N° 1
*4 COLLECTEUR D'ECHAPPEMENT AU JOINT DE CULASSE
N*m (kgf*cm, ft*lbf): couple de serrage ...
Bobine Et Bougie D'allumage
Pieces ConstitutivesPIECES CONSTITUTIVES SCHEMA
*1 ENSEMBLE DE BOBINE D'ALLUMAGE
*2 SOUS-ENSEMBLE DE CACHE DE MOTEUR N° 1
*3 BOUGIE D'ALLUMAGE
- -
N*m (kgf*cm, lbf*pi): couple de serrage prescrit
- - DeposeDEPOSE MESURE DE PRECAUTION / ...
Rechercher D'eventuels Problemes Intermittents
RECHERCHER D'EVENTUELS PROBLEMES INTERMITTENTS
REMARQUE:
Si le véhicule ou des commandes du véhicule sont actionnées (par
exemple, pendant la vérification lorsque le véhicule est amené pour des
réparations) avant la lecture et l'enregistrement de l'historique de
fonctionn ...
