DEPOSE
MESURE DE PRECAUTION / REMARQUE / CONSEIL
CONSEIL:
PROCEDURE
1. DEPOSER LE GARNISSAGE DE SUPPORT D'ENCADREMENT INFERIEUR DE PORTE AVANT
Cliquer ici
2. DEPOSER LE SOUS-ENSEMBLE DE CACHE D'ACCOUDOIR DE PORTE AVANT
Cliquer ici
3. DEPOSER L'ENSEMBLE DE CONTACTEUR PRINCIPAL DE RESEAU MULTIPLEX AVEC PANNEAU DE BASE D'ACCOUDOIR SUPERIEUR DE PORTE AVANT (pour côté conducteur)
Cliquer ici
4. DEPOSER L'ENSEMBLE DE CONTACTEUR DE LEVE-VITRE ELECTRIQUE AVEC PANNEAU SUPERIEUR DE BASE D'ACCOUDOIR DE PORTE AVANT (pour côté passager avant)
Cliquer ici
5. DEPOSER L'ENSEMBLE D'ACCOUDOIR AVANT
Cliquer ici
6. DEPOSER L'ENSEMBLE D'ECLAIRAGE D'ACCUEIL
Cliquer ici
7. DEPOSER LE SOUS-ENSEMBLE DE PANNEAU D'HABILLAGE DE PORTE AVANT
Cliquer ici
8. DEPOSER L'ENSEMBLE DE HAUT-PARLEUR AVANT N° 1
REMARQUE:
Ne pas toucher le cône du haut-parleur.

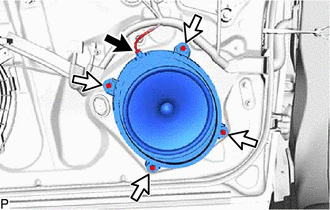

| (a) Débrancher le connecteur. |
|
(b) Déposer les 4 vis.
|

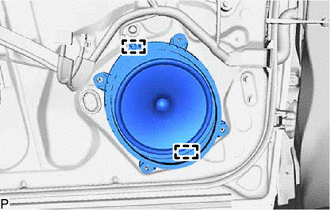

(c) Libérer les 2 guides pour déposer l'ensemble de haut-parleur avant n° 1. |
|
