REPOSE
MESURE DE PRECAUTION / REMARQUE / CONSEIL
CONSEIL:
PROCEDURE
1. REPOSER L'ENSEMBLE DE HAUT-PARLEUR AVANT N° 2
REMARQUE:
Ne pas toucher le cône du haut-parleur.
(a) Brancher le connecteur.

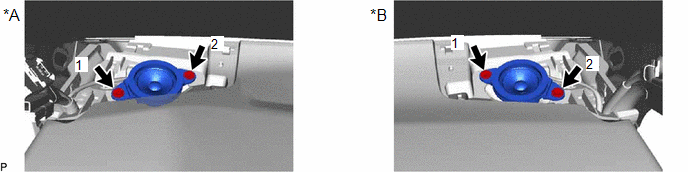

(b) Reposer l'ensemble de haut-parleur avant n° 2 avec les 2 vis.
|
*A | pour côté gauche |
*B | pour côté droit |
CONSEIL:
Reposer les vis dans l'ordre indiqué sur le schéma.
2. REPOSER LE PANNEAU DE HAUT-PARLEUR DE TABLEAU DE BORD N° 1
Cliquer ici
3. REPOSER LE GARNISSAGE DE MONTANT AVANT
Cliquer ici
4. REPOSER LE BOURRELET D'HABILLAGE D'OUVERTURE DE PORTE AVANT
Cliquer ici
